Responsibility is the assurence of Quality , And Quality is the life of corporation.

|
| Place of Origin: | China |
| Brand Name: | RTCRAFT OR OEM |
| Certification: | ISO,MPA,TUV |
| Model Number: | M2-M52 |
| Minimum Order Quantity: | 100sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic box,metal box for set |
| Delivery Time: | 35 days after your deposite |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500000pieces each month |
| Product Name:: | Taps And Dies | Material:: | Alloy Steel |
|---|---|---|---|
| Shank Type:: | Square Shank | Processing:: | Fully Ground |
| Standard: | DIN2181 | Flute:: | Straight Flute |
| Highlight: | DIN2181 Thread Cutting Taps,Straight Flute HSS Machine Taps,Fully Ground HSS Machine Taps |
||

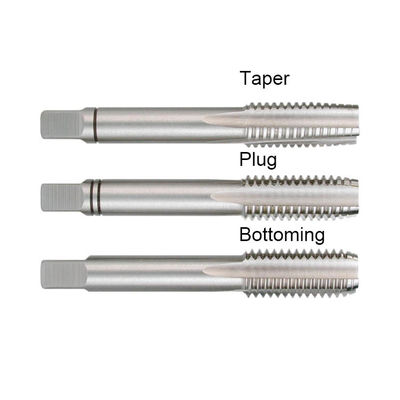

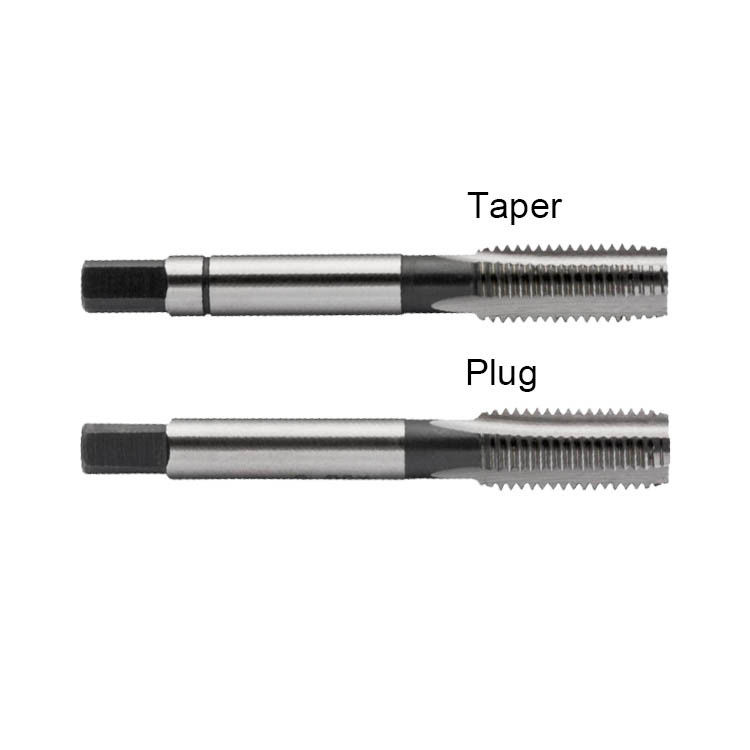

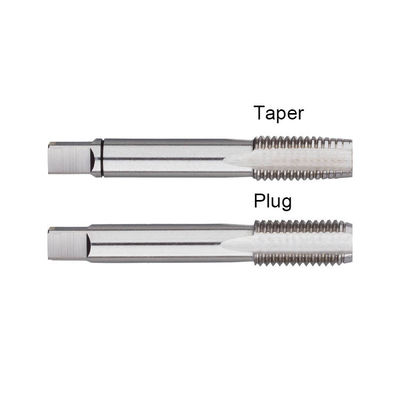

2Pcs DIN2181 Straight Flute Hand Plug Thread Cutting Taps for Steel Aluminium Copper External Thread Tapping
Discription of HSS Hand Taps
| Procuct Name | 2Pcs DIN2181 Straight Flute Hand Plug Thread Cutting Taps for Steel Aluminium Tapping |
| Flute Type | Straight Flute (Spiral Flute, Spiral Point are Available) |
| Standard | DIN2181 (ANSI Standard is Available) |
| Size | M2-M52 |
| Thread Type | MF (M, UNC, UNF, BSW, BSP are Available) |
| Material | Alloy Steel (HSS is Available) |
| Process | Fully Ground |
| Shank Type | Square Shank |
| Surface Finish | Bright Finish (Tin-Coated, other High Performance Coating are Available) |
| Package | 10/5 Piece in One PVC Pouch or in Plastic Box |
Features of HSS Hand Taps
1. Ideal for rethreading fasteners and fastener holes for auto and machinery repair.
2. Precision milled sae tap and die set for cutting raw material or repair existing threads, remove screws and more function.
3. It can improve the efficiency of processing thread, a necessary tool for hand tapping operation
4. The straight flute is the standard style of tap, designed for a range of different tapping applications.
5. A straight flute tap can be used in through or blind holes.
Size of HSS Hand Taps:
| d1 | x P | I1 | I2 | d2 | a | Pre hole |
| M 3 | x 0,35 | 40 | 8 | 3,5 | 2,7 | 2,65 |
| M 5 | x 0,5 | 50 | 11 | 6 | 4,9 | 4,5 |
| M 6 | x 0,5 | 56 | 12 | 6 | 4,9 | 5,5 |
| M 8 | x 1 | 63 | 17 | 6 | 4,9 | 7 |
| M 9 | x 1 | 63 | 17 | 7 | 5,5 | 8 |
| M 10 | x 0,75 | 63 | 18 | 7 | 5,5 | 9,2 |
| M 10 | x 1 | 63 | 18 | 7 | 5,5 | 9 |
| M 10 | x 1,25 | 70 | 22 | 7 | 5,5 | 8,8 |
| M 11 | x 1 | 63 | 18 | 8 | 6,2 | 10 |
| M 12 | x 1 | 70 | 18 | 9 | 7 | 11 |
| M 12 | x 1,25 | 70 | 20 | 9 | 7 | 10,8 |
| M 12 | x 1,5 | 70 | 20 | 9 | 7 | 10,5 |
| M 14 | x 1,25 | 70 | 20 | 11 | 9 | 12,8 |
| M 14 | x 1,5 | 70 | 20 | 11 | 9 | 12,5 |
| M 16 | x 1 | 70 | 18 | 12 | 9 | 15 |
| M 16 | x 1,5 | 70 | 20 | 12 | 9 | 14,5 |
| M 18 | x 1 | 80 | 18 | 14 | 11 | 17 |
| M 18 | x 1,5 | 80 | 22 | 14 | 11 | 16,5 |
| M 18 | x 2 | 80 | 22 | 14 | 11 | 16 |
| M 20 | x 1 | 80 | 18 | 16 | 12 | 19 |
| M 20 | x 1,5 | 80 | 22 | 16 | 12 | 18,5 |
| M 20 | x 2 | 80 | 22 | 16 | 12 | 18 |
| M 22 | x 1 | 80 | 18 | 18 | 14,5 | 21 |
| M 22 | x 1,5 | 80 | 22 | 18 | 14,5 | 20,5 |
| M 22 | x 2 | 80 | 22 | 18 | 14,5 | 20 |
| M 24 | x 1 | 90 | 18 | 18 | 14,5 | 23 |
| M 24 | x 1,5 | 90 | 22 | 18 | 14,5 | 22,5 |
| M 24 | x 2 | 90 | 22 | 18 | 14,5 | 22 |
| M 25 | x 1,5 | 90 | 22 | 18 | 14,5 | 23,5 |
| M 26 | x 1,5 | 90 | 22 | 18 | 14,5 | 24,5 |
| M 28 | x 1,5 | 90 | 22 | 20 | 16 | 26,5 |
| M 30 | x 1 | 90 | 18 | 22 | 18 | 29 |
| M 30 | x 1,5 | 90 | 22 | 22 | 18 | 28,5 |
Application of HSS Hand Taps:
For Steel Aluminium Copper External Thread Tapping
Package and Delivery:
1. Package:Plastic box,
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
Payment and Sample Policy:
1. Payment:30%T/T in advance,the balance before shipment or against the B/L
2. Other payment could be acceptable.
3. Sample poliy:We can provide samples for free for testing.
4. Samples time:About 7-10days.
